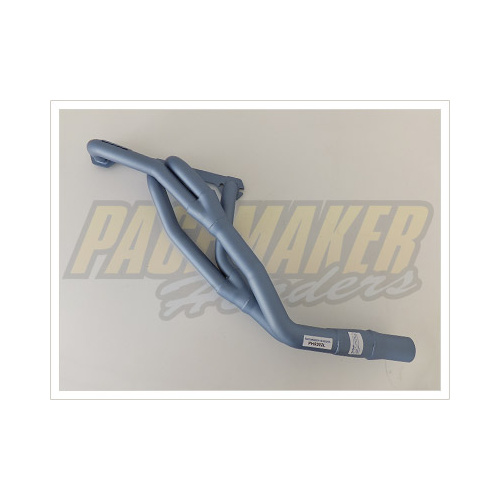

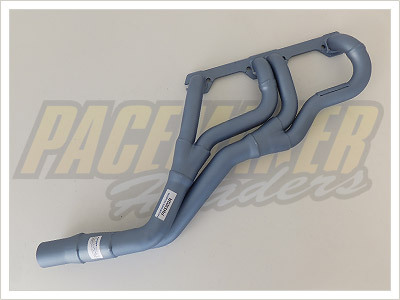

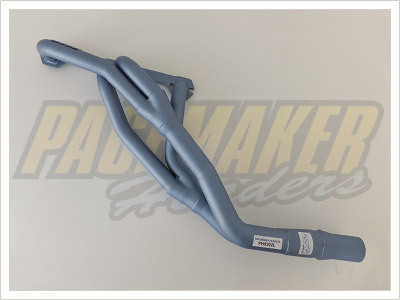

Pacemaker Extractors (Tri-Y Design) for HT & HG Holden's to 283, 327, 350 & 400 Chev Small Block
SKU: ph5302
These Extractors are an Order In Product, Please Call Us if you are requiring these within 2 Weeks
These Extractors are for Engines that have the Alternator on the Right Hand Side, If Your Alternator is on the Left Hand Side then Order Part # ph5303
These Extractors are Designed to Fit with a Genuine Factory Starter Motor Fitting to a 153 Tooth 10 1/2" Flexplate (Auto Only) or a 153 Tooth 13" Ring Gear (Manual Only)
For Use with 283, 327, 350 & 400 Chev Small Block Engines
Tri-Y Design
Suitable for Manual & Automatic Cars
Notes
| Will Fit with Slant Spark Plug Heads |
| Will Fit with Powerglide Automatic |
| Will Fit GM T400 Automatic if the Cars Floor has been Cut for Correct Fitment of the Automatic |
| Will Not Fit with Column Automatic Unless the Linkages are Modified |
| Will Fit with Power Steering |
| Will Only Fit with Original Engine Mounting Spacers or Pacemaker Spacers (Part # PEMP 307) |
| Spacers Must be Fitted on Correct side of vehicle (Right Hand Spacer is ¼" Higher than Left Hand Spacer) |
Specifications
| Power Steering: | No | Gasket: | DSF 9 |
| Air Con: | N/A | Primary Pipe: | 1 5/8" (41mm) |
| Oxy Sen: | N/A | 2nd Pipe: | 2" (51mm) |
| E.G.R: | N/A | Outlet: | 2 1/4" (57mm) |
| Y Branch: | N/A | Fitting Time: | 3 Hrs |
These Extractors are an Order In Product, Please Call Us if you are requiring these within 2 Weeks
These Extractors are for Engines that have the Alternator on the Right Hand Side, If Your Alternator is on the Left Hand Side then Order Part # ph5303
These Extractors are Designed to Fit with a Genuine Factory Starter Motor Fitting to a 153 Tooth 10 1/2" Flexplate (Auto Only) or a 153 Tooth 13" Ring Gear (Manual Only)
For Use with 283, 327, 350 & 400 Chev Small Block Engines
Tri-Y Design
Suitable for Manual & Automatic Cars
Notes
| Will Fit with Slant Spark Plug Heads |
| Will Fit with Powerglide Automatic |
| Will Fit GM T400 Automatic if the Cars Floor has been Cut for Correct Fitment of the Automatic |
| Will Not Fit with Column Automatic Unless the Linkages are Modified |
| Will Fit with Power Steering |
| Will Only Fit with Original Engine Mounting Spacers or Pacemaker Spacers (Part # PEMP 307) |
| Spacers Must be Fitted on Correct side of vehicle (Right Hand Spacer is ¼" Higher than Left Hand Spacer) |
Specifications
| Power Steering: | No | Gasket: | DSF 9 |
| Air Con: | N/A | Primary Pipe: | 1 5/8" (41mm) |
| Oxy Sen: | N/A | 2nd Pipe: | 2" (51mm) |
| E.G.R: | N/A | Outlet: | 2 1/4" (57mm) |
| Y Branch: | N/A | Fitting Time: | 3 Hrs |
These Extractors are an Order In Product, Please Call Us if you are requiring these within 2 Weeks
These Extractors are for Engines that have the Alternator on the Right Hand Side, If Your Alternator is on the Left Hand Side then Order Part # ph5303
These Extractors are Designed to Fit with a Genuine Factory Starter Motor Fitting to a 153 Tooth 10 1/2" Flexplate (Auto Only) or a 153 Tooth 13" Ring Gear (Manual Only)
For Use with 283, 327, 350 & 400 Chev Small Block Engines
Tri-Y Design
Suitable for Manual & Automatic Cars
Notes
| Will Fit with Slant Spark Plug Heads |
| Will Fit with Powerglide Automatic |
| Will Fit GM T400 Automatic if the Cars Floor has been Cut for Correct Fitment of the Automatic |
| Will Not Fit with Column Automatic Unless the Linkages are Modified |
| Will Fit with Power Steering |
| Will Only Fit with Original Engine Mounting Spacers or Pacemaker Spacers (Part # PEMP 307) |
| Spacers Must be Fitted on Correct side of vehicle (Right Hand Spacer is ¼" Higher than Left Hand Spacer) |
Specifications
| Power Steering: | No | Gasket: | DSF 9 |
| Air Con: | N/A | Primary Pipe: | 1 5/8" (41mm) |
| Oxy Sen: | N/A | 2nd Pipe: | 2" (51mm) |
| E.G.R: | N/A | Outlet: | 2 1/4" (57mm) |
| Y Branch: | N/A | Fitting Time: | 3 Hrs |
Specifications
| Power Steering: | No | Gasket: | DSF 9 |
| Air Con: | N/A | Primary Pipe: | 1 5/8" (41mm) |
| Oxy Sen: | N/A | 2nd Pipe: | 2" (51mm) |
| E.G.R: | N/A | Outlet: | 2 1/4" (57mm) |
| Y Branch: | N/A | Fitting Time: | 3 Hrs |
| SKU | ph5302 |
| Brand | Pacemaker |
| Shipping Weight | 17.0000kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.290m |
| Shipping Length | 1.270m |
| Shipping Cubic | 0.139954000m3 |
